Rig LED neon anywhere.

A two-piece clamp-on collar and a rated lifting eyebolt turn any run of 40mm pixel rope into a hang point — no adhesive, no drilling, no damage to the tube.

View Specs arrow_downward

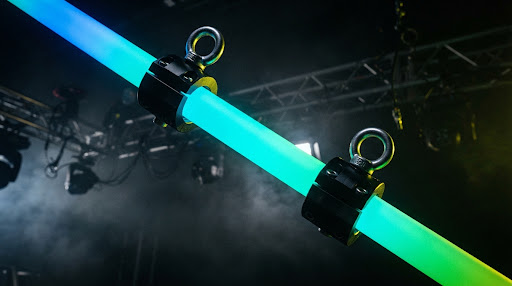

LED Neon Tube suspended by black clamp rings and wire ropes in a dark stage environment.

Two parts. That's it.

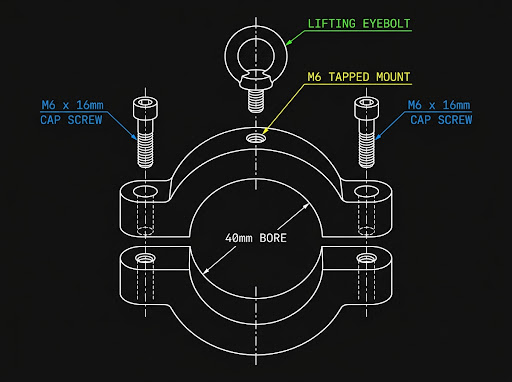

Technical illustration showing an exploded view of a two-piece clamp collar, two M6 screws, and a lifting eyebolt on a dark background.

radio_button_checked

Shaft Collar

Two-Piece Clamp-On (McMaster 5878T635)

build

Vertical M6 Cap Screws

Standard Hex Drive

anchor

Lifting Eyebolt

400 lb capacity

Part	Spec	Detail
Shaft Collar (McMaster 5878T635)	40mm bore, 55mm across flats, 60mm height, 15mm width, M6 tapped	Splits in half, clamps around the tube.
Lifting Eyebolt	M6 x 1mm thread, 19mm closed eye, 400 lb vertical capacity	Shouldered, zinc-plated steel.

* Available in 20mm bore for smaller tube.

splitscreen 01

Split the collar

Open the two halves.

adjust 02

Seat it on the tube

Position around the 40mm rope.

settings_b_roll 03

Torque both screws

Secure the collar firmly.

link 04

Thread the eyebolt

Attach your safety and fly.

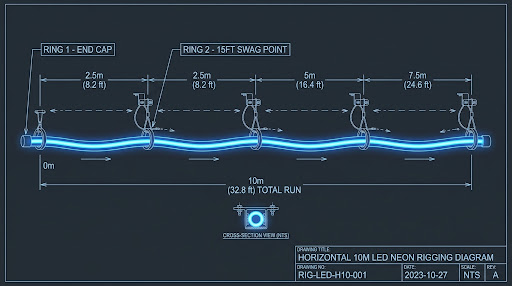

Placement / Spacing Rules

Ring 1 at the non-cable end

Ring 2 15 ft in from that end

Rule:

one ring at each segment end + one every 4-5m

Note: Pixel 1 orientation is the cable end.

400lb Eyebolt Capacity

40mm Bore Size (20mm Avail)

0.25kg Per Pair Weight

2 Rings per 10m Stick

verified Field-Proven
